Open Top Bathtub Style Roll Off Containers

Custom  Manufacturing's commitment to quality is best demonstrated by the durability of the product we manufacture.  We do not mass produce our products.  All Containers are built to our customers specification and satisfaction.  Our containers are AMERICAN made 100%


   Integrity              Quality             Tradition           Superiority

Custom  Manufacturing's  Open Top Bathtub Style Roll Off Containers are manufactured from prime structural grade sheet plate, and tubing.  Built to withstand even the punishment associated with handling urban renewal debris.

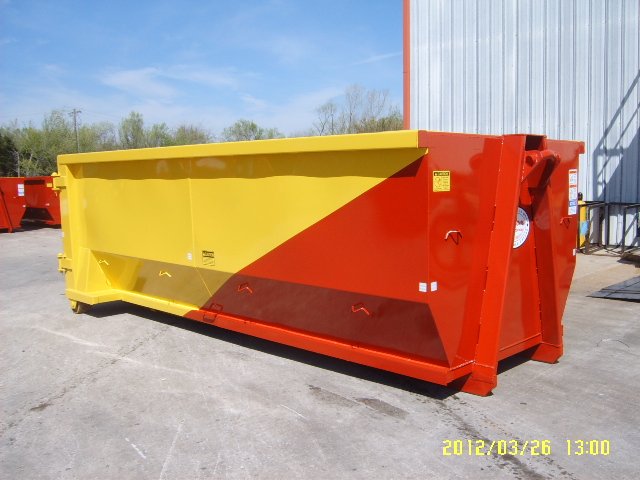

SUC52945

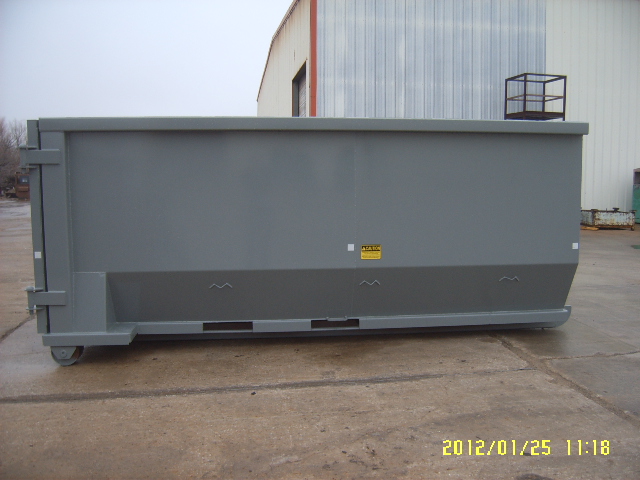

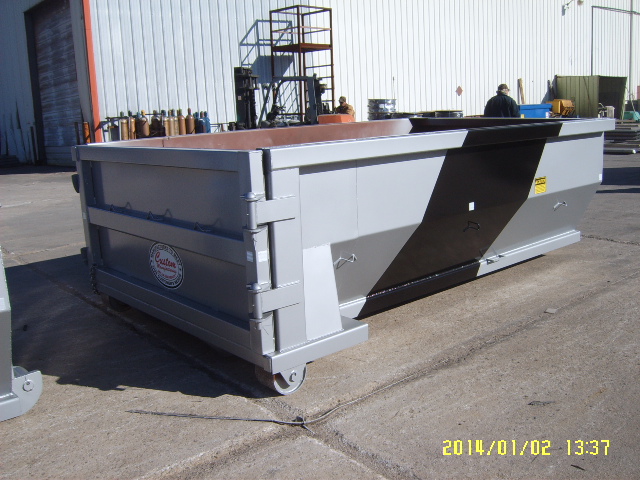

SUC52310SUC52259

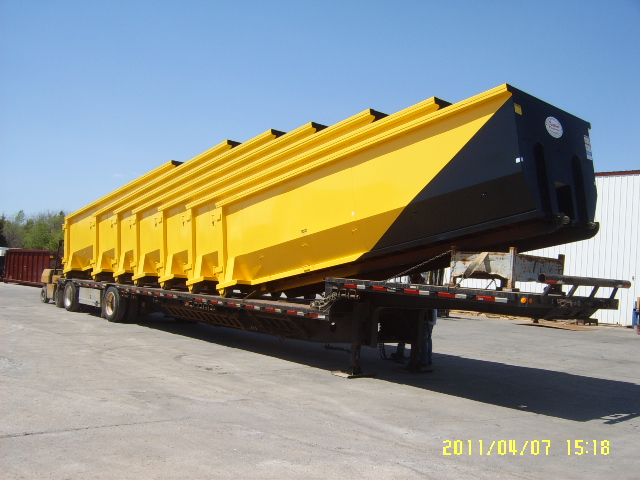

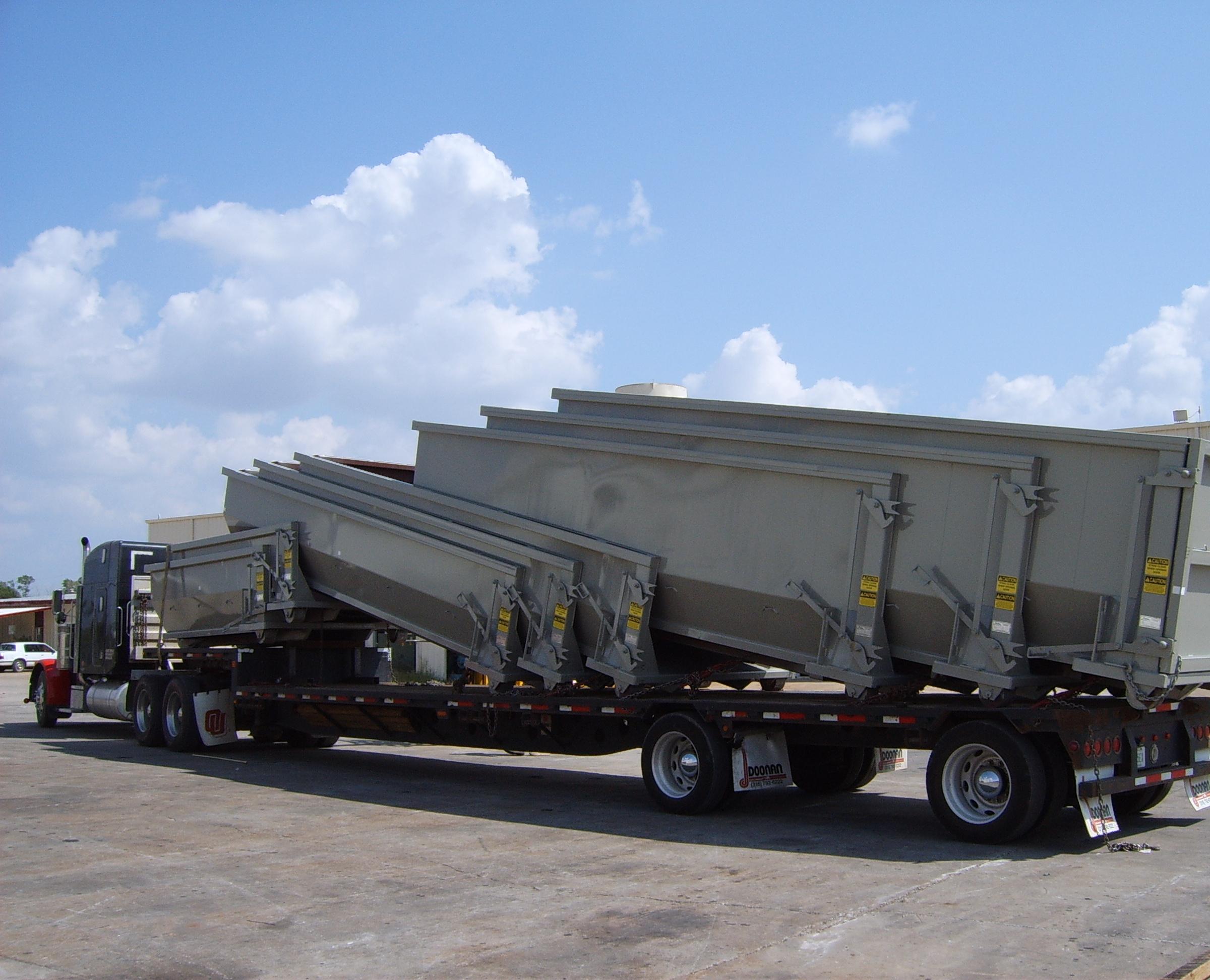

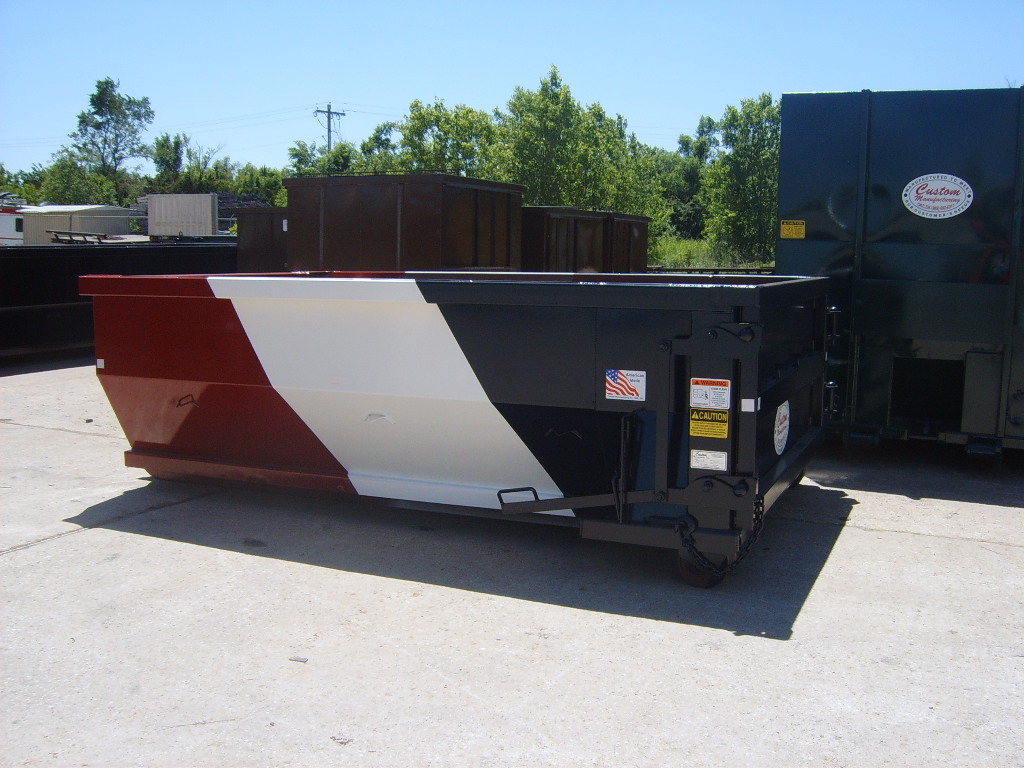

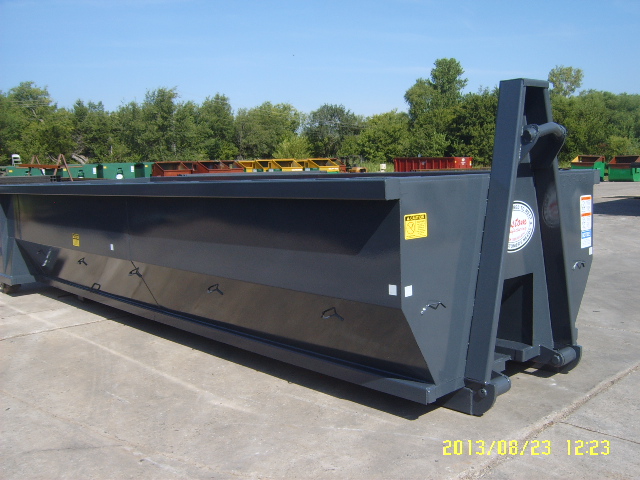

SUC50715Picture_014SUC51708







Containers are equipped with alignment lock to keep walls from spreading. All containers are equipped with a positive door locking system for added stability and security.  "V-Lock" keeps the door stationary while in transport.  Equipped with safety chain and hook.

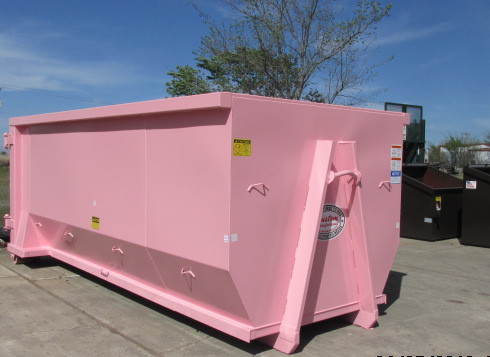

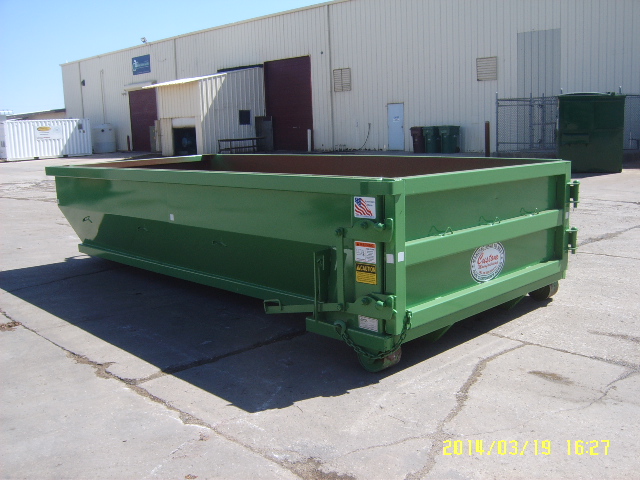

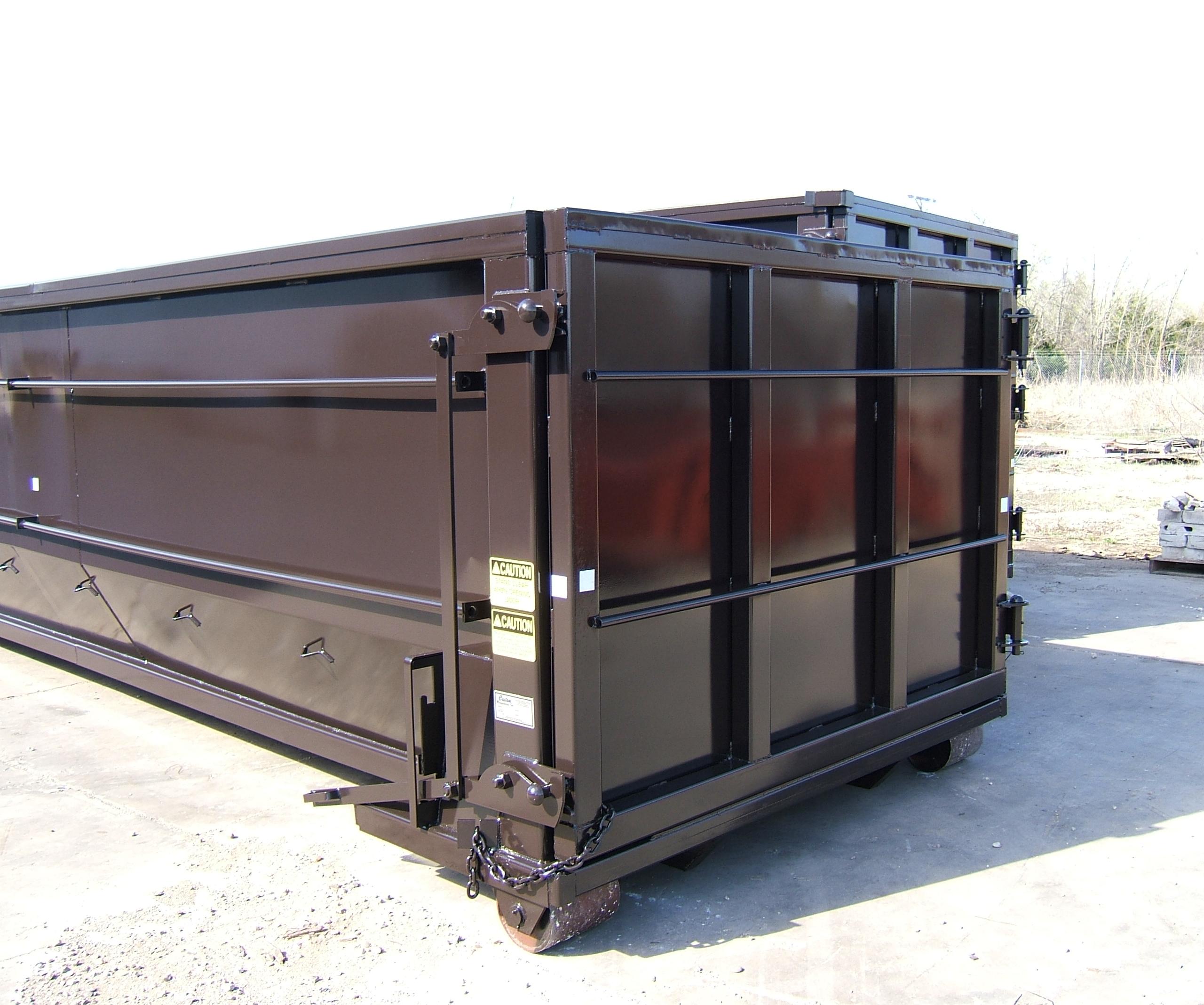

Picture_010SUC52833imageedit_1_2333200965

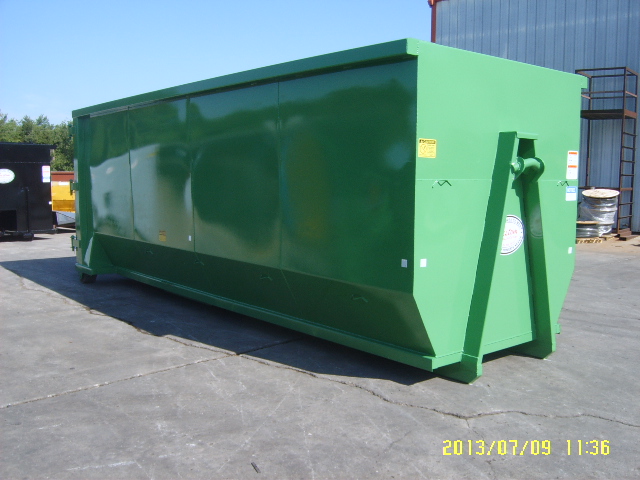

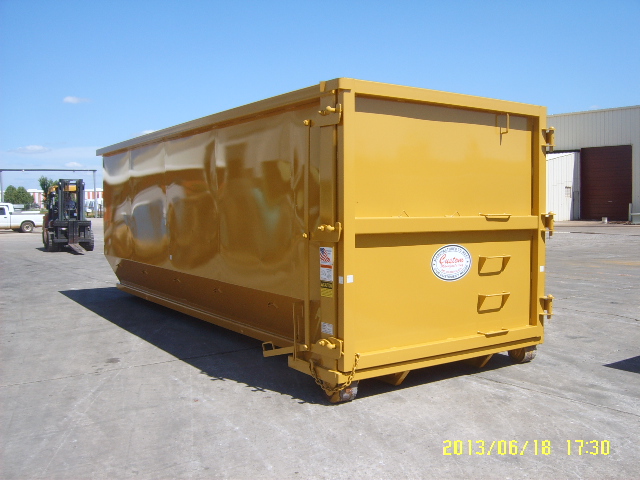

SUC51206SUC51153SUC50893

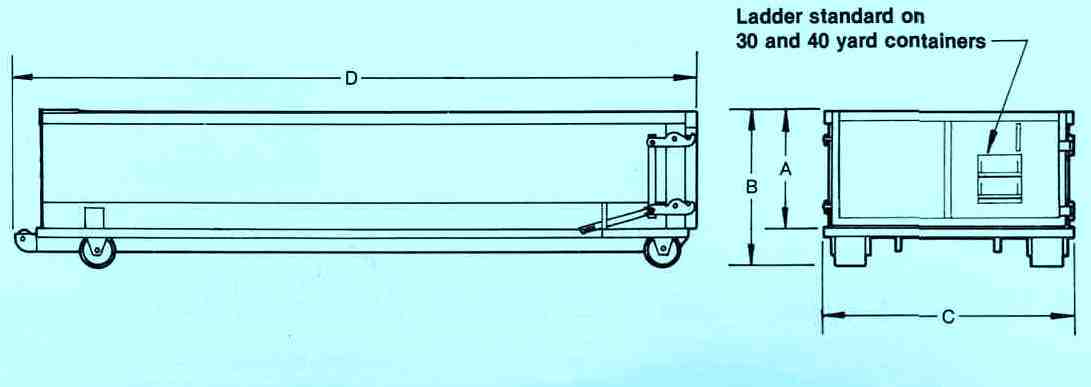

bathtub_style_drawing









 SIZE
 A
 B
 C
 D
 LOAD
 10YD 42" 54" 96" 13'4"
 10
 20YD 43" 55" 96" 23'6"
 7
 30YD 63" 77" 96" 23'6"
 7
 40YD 84" 96" 96" 23'6"
 4

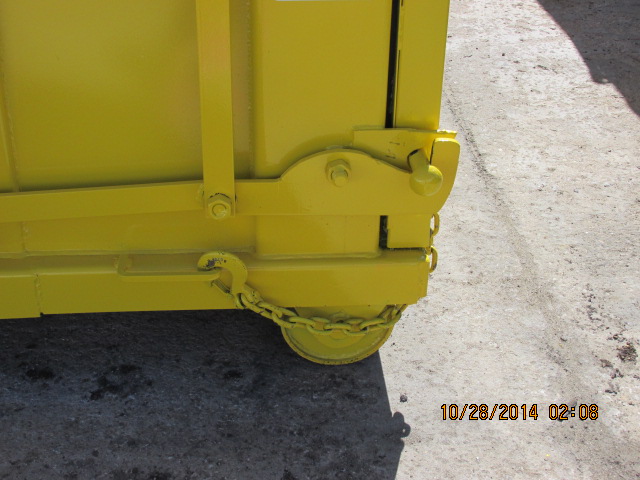

LATCH3hinge_assyBul_Nose_and_Rooler





STANDARD FEATURES

  • Sides, Bulkhead and Doors       10 Ga. HR Sheet
  • Top Rail                                     4" X 4" X 3/16" Structural Tube
  • Floor                                          3/16" HR Plate
  • Main Rails                                 6" X 2" X 3/16" Structural Tube
  • Solid Bar Rail Butts                  1 1/4" HR Plate
  • Roller Finger                             3/4 Plate Roller Finger
  • Pull Plate and Pull Hook           Pull Plate (3/4" HR Plt) / Pull Hook ( 1 1/4" Grd 50 Plt)
  • Gussets                                      (2) Gussets on every other crossmember
  • Rear Wheels                              (2) 8" with 1 7/8" CR Axles
  • Axles                                          All axles and hinges have zerk grease fittings
  • Flat Bulkhead                            3 X 2 Vertical Tube Uprights
  • Latch                                          With Door Guides and Safety Chains
  • Primer                                        Phenolic Modified Industrial Primer
  • Paint Color                                Per Customer Request
  • ANSI Safety Decals included on all equipment free of charge

OPTIONAL                                OPTIONAL

UNDER-STRUCTURE               ACCESSORIES

  • Front Wheels                              Top Rails       4" X 4" X 1/4"
  • Dempster                                     Main Rails    6" X 2" X 1/4" or 6" X 2" X 3/8"
  • Heil Dead Lift                             Wear Strip     1/4" X 1 1/2"
  • Ampliroll                                     Floor             1/4"
  • Stellar                                          Front Wheels/Landing Pads
  • Swap Loader                               Cross members on 12" Centers
  • Pal-Lift
